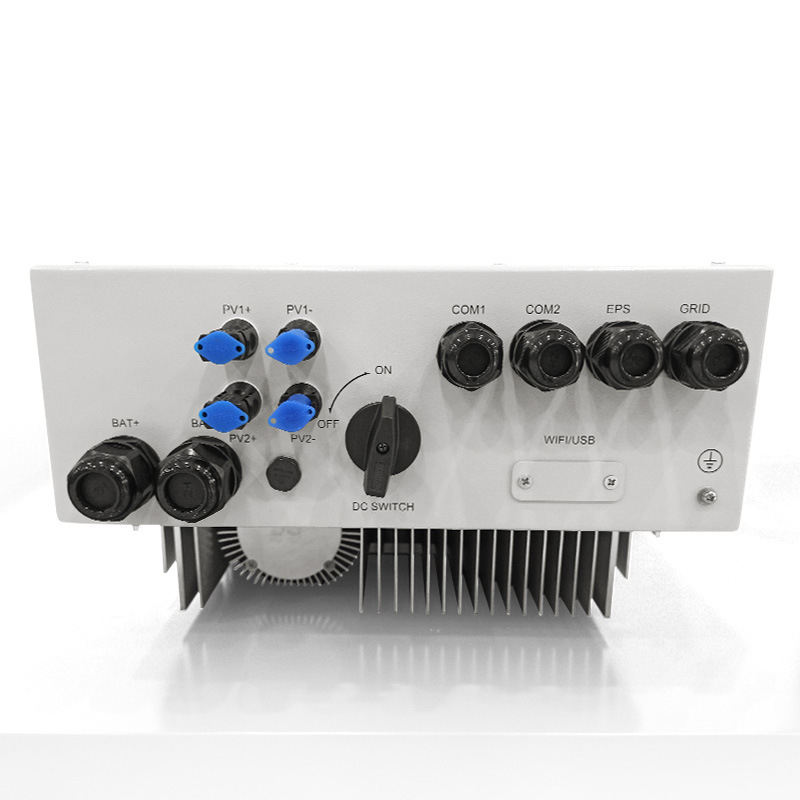

Home Inverter System 5kw Hybrid Solar Inverter 48V
PRODUCTION LINES
OUR EXHIBITION
Parameters:
| Model | JHY5000 |
| DC Input (PV) | |
| Maximum PV Input Power | 7000W |
| Maximum DC Voltage | 500V |
| Starting Voltage | 150V |
| Rated Voltage | 360V |
| MPPT Operating Voltage Range | 120V ~430V |
| Number Of MPPTs | 2 |
| Number Of MPPT Strings Per Circuit | 1 |
| Maximum Input Current Per MPPT | 15A |
| Maximum Short-Circuit Current Per MPPT | 18.9A |
| AC Output (Grid-Connected) | |
| Rating | 5000W |
| Maximum Apparent Power | 5500VA |
| Rated Voltage (Range) | 230V |
| Rated Frequency (Range) | 50Hz / 60Hz |
| Maximum Output Current | 23.9A |
| Power Factor | 0.8 Ahead ~ 0.8 Behind |
| THDi | < 3% |
| Type Of Grid Connection | L+N+PE |
| Battery Input | |
| Battery Type | Lithium-Ion / Lead-Acid Batteries |
| Operating Voltage Range | 41.6V ~ 58.5V |
| Maximum Charge/Discharge Current | 95A / 100A |
| AC Output (Power Backup) | |
| Maximum Output Power | 4500W |
| Maximum Apparent Power | 4500VA |
| Maximum Output Current | 23.9A |
| Rated Voltage | 230V |
| Rated Frequency | 50Hz / 60Hz |
| THDv | < 3% |
| Switching Time | < 20ms (Capacitive Load); < 10ms (Resistive Load) |
| Efficiency | |
| Maximum Efficiency | 0.978 |
| European Efficiency | 0.97 |
| MPPT Efficiency | 0.9999 |
| Protection Facilities | |
| DC Switch | Supported |
| AC Lightning Protection | Supported |
| AC Short Circuit Protection | Supported |
| Ground Fault Monitoring | Supported |
| Grid Monitoring | Supported |
| Antislanding Protection | Supported |
| Leakage Current Monitoring | Supported |
| Insulation Impedance Monitoring | Supported |
| General Data | |
| Dimensions (W*H*T mm) | W350*H580*T230 mm |
| Weights | 25kg |
| Operating Temperature Range | -25℃~60℃ |
| Self-Consumption At Night | <10W |
| Topological Structure | Transformerless Design |
| Cooling Method | Natural Cooling |
| Protection Class | IP65 |
| Relative Humidity | 0-95% No Condensation |
| Altitude | 2000m |
| DC Connection Type | MC4 |
| Type Of AC Connection | Connectors |
| Display Mode | LCD |
| Communication Interface | RS485/CAN/USB |
| Monitoring Interface | WIFI |
| Warranty: | 5 Years |
| Certification | VDE 0126-1-1: 2013 + VFR: 2019 / VDE-AR-N 4105: 2018-11 + Correction 1:2020-1 |
| EN IEC 61000-6-1: 2019 / EN IEC 61000-6-3: 2021 / EN 62109-1:2010 / EN 62109-2:2011 / EN 50549-1: 2019(1) | |
| IEC 62321-3-1:2013 / IEC 62321-4:2013+A1:2017 / IEC 62321-5: 2013 / IEC 62321-7-1:2015 / IEC 62321-7-2:2017 / IEC 62321-6:2015 / IEC 62321-8:2017 / IEC 62116 | |
| ENA Engineering Recommendation G98 Issue 1 Amendment 6 / September 2021 / ENA Engineering Recommendation G99 Issue 1 Amendment 8, 01 / September 2021 | |
| RD 647 / 2020 / RD 413 / 2014 / RD 1699 / 2011 / UTE C15-712-1 (JUILET 2013) / DOC-030221-GAP / (EC) No. 1907; 2006 / UNE-EN SO / IEC 17065 | |
| DIN VDEV 0124-100(VDE V0124-10):2020-06 / CEI-021:2019 CEI 0-21:2022-03+V1:2022-11 / NRS-097 / EMC(IEC61000-2-2&CISPR11) |
