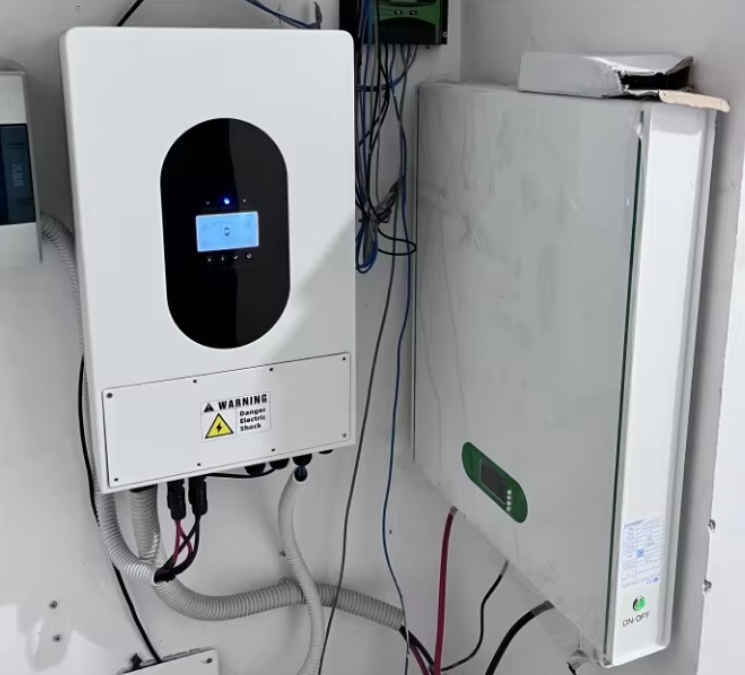

Hybrid solar system for home (6kw Hybrid Inverter)
Product Advantages
1. 6KW hybrid inverter (pure sine wave inverter) is a new all-in-one hybrid solar charge inverter, which integrates solar energy storage & means charging energy storage and AC sine wave output. Using the latest optimised MPPT technology, it can quickly track the maximum power point of the PV array with an efficiency of up to 99.9%.
2. Home power inverters that comes equipped with four charging modes (Solar Only, Mains Priority, Solar Priority, Hybrid Charging) and 2 output modes(Utility bypass and inverter output) with uninterrupted power supply function.
3. Our hybrid inverter features full system protection, including protection against short circuits, over/under voltage, overload, and backfill, among other features.

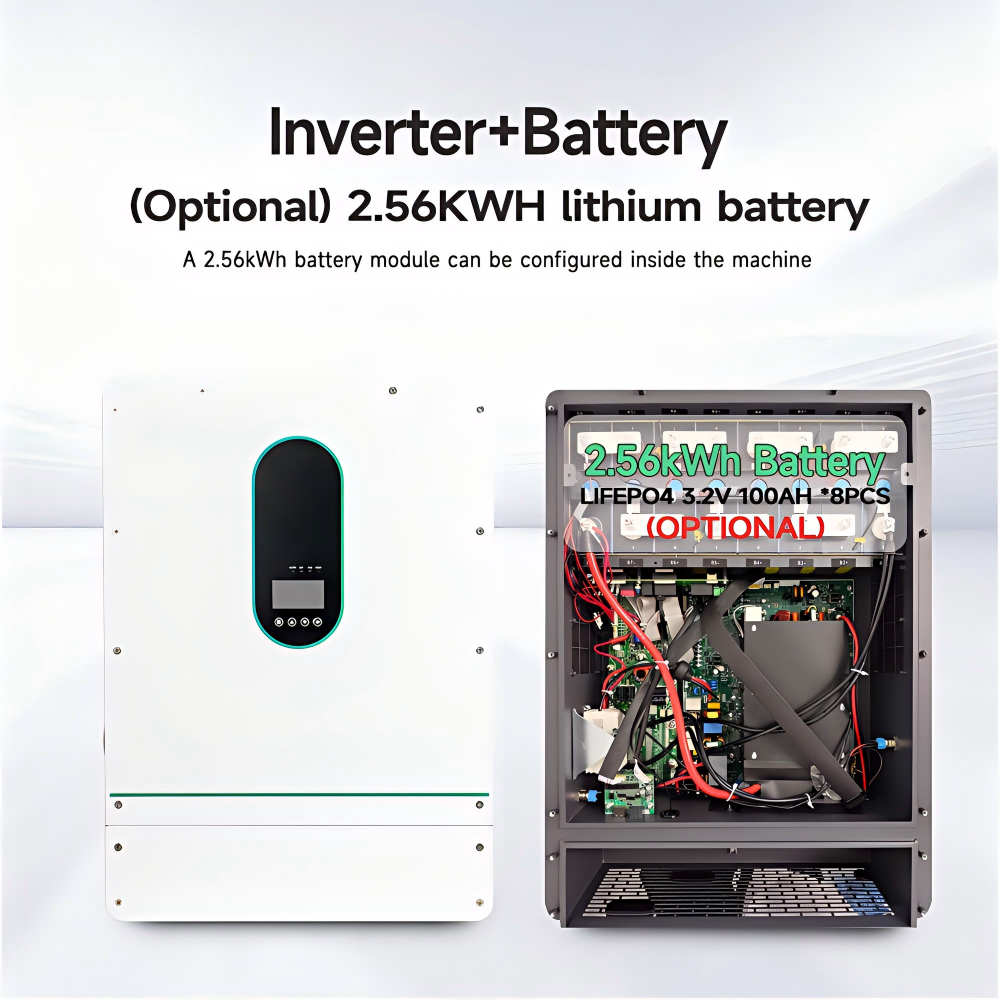

4. Compatible with various batteries such as Lead-acid, Lithium-ion and LiFePO4 batteries, and support Batteryless mode: can power the loads from PV/AC grid without battery connected.
5. The 6KW solar inverter allows connection of up to 16 units simultaneously. This configuration grants a total power output of up to 96KW, catering to various applications such as residential, office, commercial, and industrial use.
Parameters
| Model | JHY-G6k |
| DC Input (PV) | |
| Maximum PV Input Power | 7800W |
| Maximum DC Voltage | 500V |
| Starting Voltage | 160V |
| Rated Voltage | 370 (125~500) |
| MPPT Operating Voltage Range | 150 ~425 |
| Number Of MPPTs | 2 |
| Number Of MPPT Strings Per Circuit | 2+1 |
| Maximum Input Current Per MPPT | 26+13 |
| Maximum Short-Circuit Current Per MPPT | 44+22 |
| AC Output (Grid-Connected) | |
| Rating | 6600W |
| Maximum Apparent Power | 6600VA |
| Rated Voltage (Range) | 230V |
| Rated Frequency (Range) | 50 / 60Hz |
| Maximum Output Current | 40A |
| Power Factor | 0.8 Leading ~ 0.8 Lagging |
| THDi | < 3% |
| Type Of Grid Connection | L+N+PE |
| Battery Input | |
| Battery Type | Lithium / Lead-Acid |
| Operating Voltage Range | 40 ~ 60 |
| Maximum Charge/Discharge Current | 135 / 190 |
| AC Output (Power Backup) | |
| Maximum Output Power | 6000W |
| Maximum Apparent Power | 6600VA |
| Maximum Output Current | 40A |
| Rated Voltage | 230V |
| Rated Frequency | 50Hz / 60Hz |
| THDv | < 3% |
| Switching Time | < 10ms |
| Efficiency | |
| Maximum Efficiency | 97.60% |
| European Efficiency | 96.50% |
| MPPT Efficiency | ＞99% |
| Protection Facilities | |
| DC Switch | Supported |
| AC Lightning Protection | Supported |
| AC Short Circuit Protection | Supported |
| Ground Fault Monitoring | Supported |
| Grid Monitoring | Supported |
| Antislanding Protection | Supported |
| Leakage Current Monitoring | Supported |
| Insulation Impedance Monitoring | Supported |
| General Data | |
| Dimensions (W*H*T mm) | W330*H580*T239.5 mm |
| Weights | 25kg |
| Operating Temperature Range | -40℃~ + 60℃, Derating > 45℃ |
| Self-Consumption At Night | 100W |
| Topological Structure | Transformerless Design |
| Cooling Method | Natural Cooling |
| Protection Class | IP65 |
| Relative Humidity | 0-95% No Condensation |
| Altitude | 2000m |
| DC Connection Type | MC4 |
| Type Of AC Connection | Connectors |
| Display Mode | LCD |
| Communication Interface | RS485/CAN/USB |

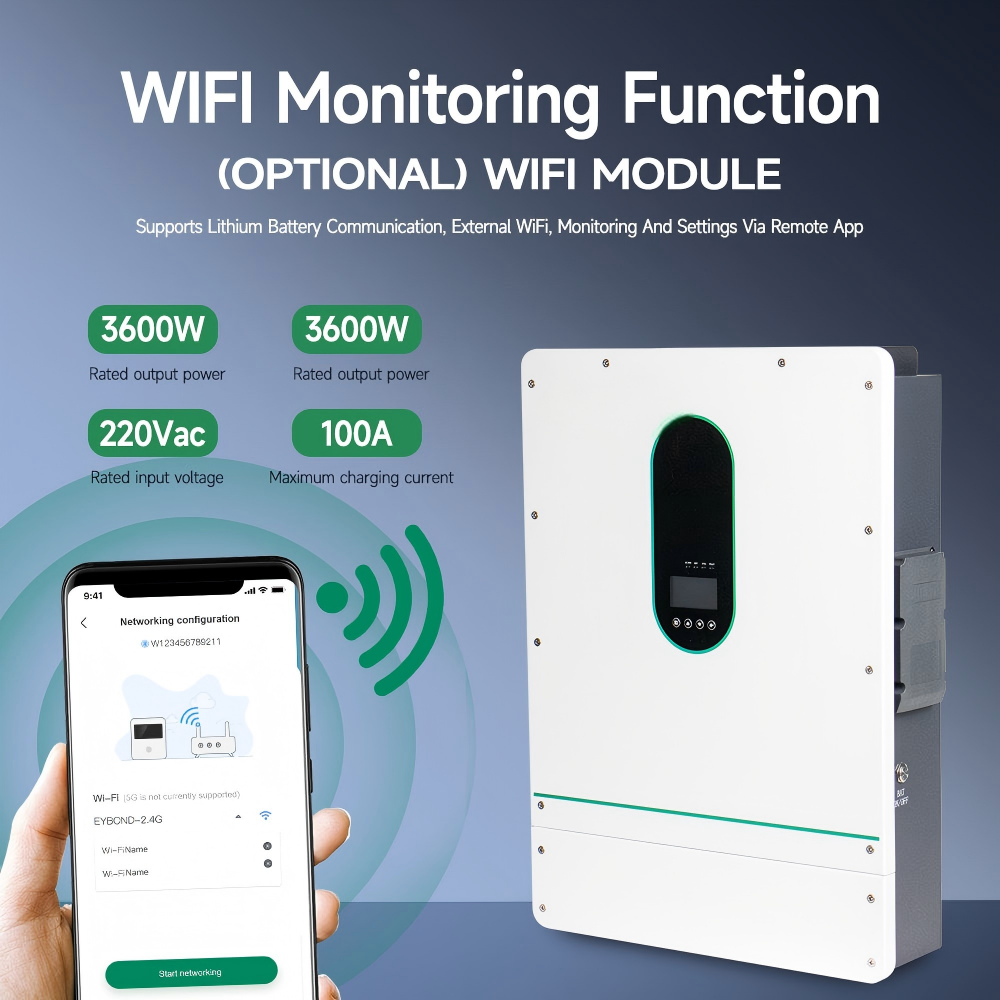

| Monitoring Interface | WIFI |
| Warranty: | 5 Years |
| Certification | CE |
