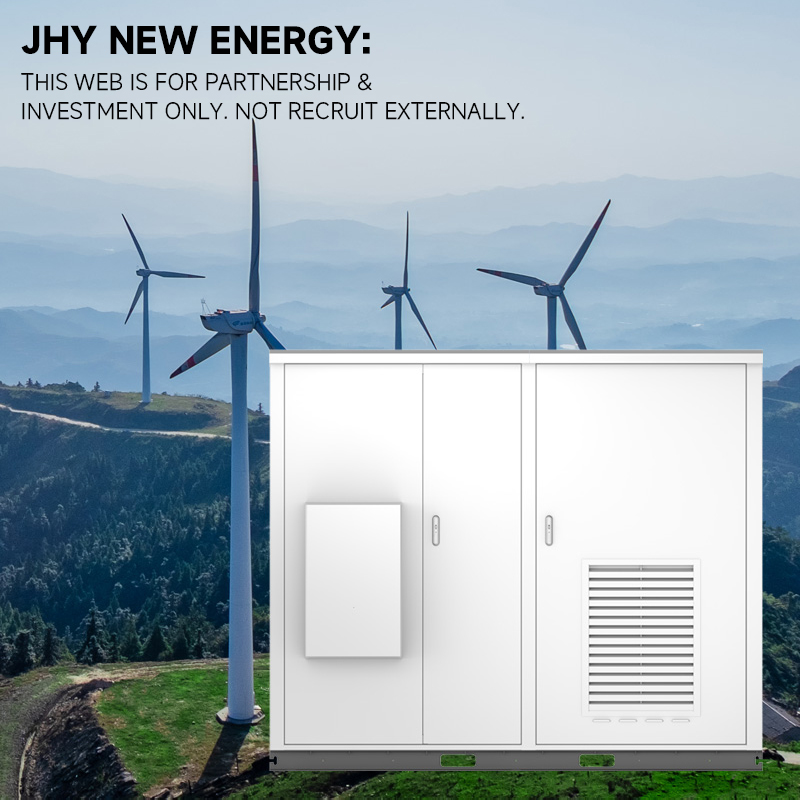

100kwh Bess Renewable Energy 50kw Inverter
BESS Energy (BESS Solar)
What makes these cabinets Home BESS stand out? Imagine an outdoor cupboard that houses all the elements needed for storing renewable energy, neatly packed in one easy-to-manage unit. That’s exactly what an outdoor all-in-One energy storage system cabinet is. Neat, right?
Think of BESS storage system as your personal mini power station. They store surplus energy and make it available whenever you need it. This ensures a constant supply of power, even during outages, maintaining the heartbeat of your electricity-dependent world.
Applications
1. Off-grid area 2. Without electricity (power shortage) area 3. Remote rural area
| AC data | |
| Model | ESSO50B100 |
| Rated power (kW) | 50 |
| Rated voltage (V) | 400 |
| Rated current (A) | 72 |
| Voltage range (V) | 320V-460V |
| Rated frequency | 50/60Hz |
| Frequency Range | 45-55/55-65Hz |
| THDi(on-grid) | <3% |
| THDu (off-grid) | ≤ 1% linear; ≤ 5% non-linear |
| Power factor | 1 (0.8 leading ~ 0.8 laging can be set) |
| Overload capacity | 110% Long term |
| AC output | 3W+N+PE |
| Isolation transformer | 200/400 |
| On -grid off-grid switching | Support |
| PV data | |
| Max.PV input voltage (V) | 1000 |
| Max. PV power (kW) | 60/120 |
| MPPT operating voltage range (V) | 250~850 |
| MPPT full load voltage range (V) | 450~850 |
| Buck-boost mode | Support |
| Battery data | |
| Cell type | 3.2V/280Ah/1C,LFP |
| Nominal voltage(V) | 358.4V，1P112S |
| Nominal energy (kWh) | 100.352 |
| Working voltage range (V) | 319.2~397.6 |
| Max. charge and discharge rate | 0.5C@25℃ |
| Number of Battery Cycles | ≥3,800 |
| System data | |
| Dimensions W *D *H (mm) | 1,770*1,510*2,270 |
| Net weight (kg) | 2400 |
| Operating temperature (℃) | 0 ～ +45 |
| Relative humidity | 0 ~95%（non-condensing） |
| Ingress protection | IP54 |
| Noise emission (dB) | <75 |
| Operating altitude | 3,000m |
| Cooling | Intelligent air cooling |
| fire extinguishing system | Aerosols/NOVEC1230 |
| Display | Touch LCD display+cloud platform |
| EMS communication | RS485，TCP/IP |
