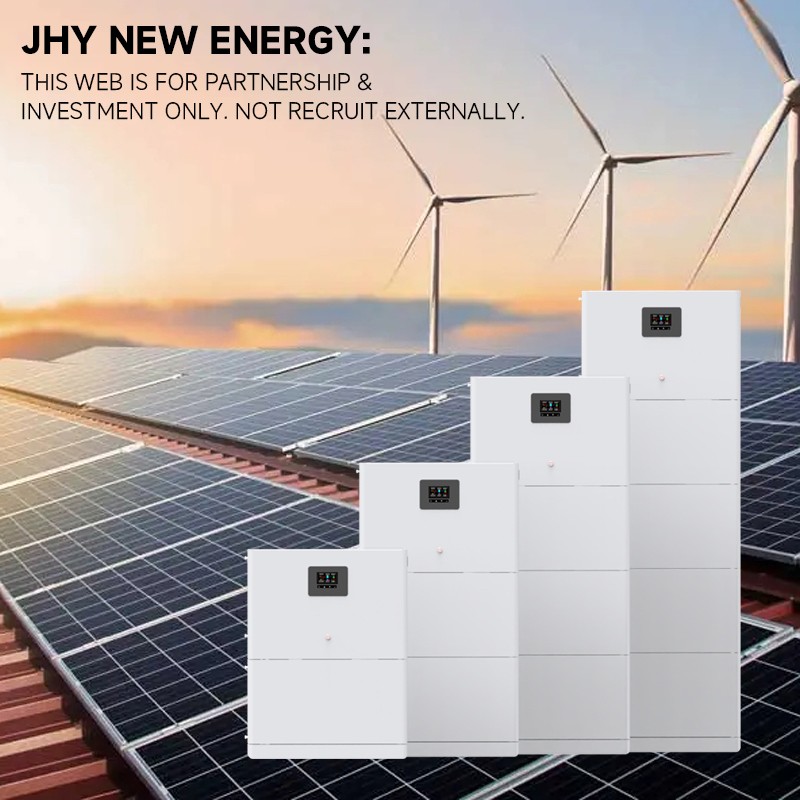

Home Solar Battery System
PV INPUT (DC) | JHY-O10K |
Recommend max. pv input power | 10000wp |
Nominal Dc voltage/Maximum Dc voltage | 360V DC/500V DC |
start-up voltage/Initial Feeding voltage | 90V DC/ 120V DC |
MPPT voltage Range | 60~450V DC |
Default NO. of pv string sper MPPT | 1/27A |
Two Load out Put Power | |
Full Load | 10000W |
Maximum Main Load | 10000W |
Maximum second Load(battery mode) | 3400W |
Main Load cutoff voltage | 44V DC |
Main Load Return voltage | 52V DC |
Grid Output(AC) | |
Ac start-up voltage/Auto Restart voltage | 220/230/240VAC |
output voltage Range | 195.5~253VAC |
Nominal output current | 44.3A |
power Factor | >0.99 |
Feed-in Grid Frequency Range | 49~51土 1 HZ |
Maximum conversion Efficiency(s loar to AC） | 98% |
AC Input | |
Ac start-up voltage/Auto Restart voltage | 120-140VAC/180VAC |
Acceptable Input voltage Range | 90-280VAC Or 170-280VAC |
Maximum AC Input current | 50A |
Nominal operating frequency | 50/60HZ |
surge power | 20400W |
Model | JHY10SP |
Nominal Dc voltage | 51 .2V |
Battery capacity | 200Ah(1 00Ah*2） |
Energy(kwh) | 10.24kwh |
Maximum Discharging current | 100A |
cycle Life | ≥6000cycles(80%DOD) |
certification | UN38.3, MSDS, CE-EMC |
Temperature range | -20 ~ 60℃ |
Environment humidity | 0-95% |
Dimensions (H*W*D) mm | 1185* 640* 192mm |
Net weight (kg) | 120KG |
communication method | WIFI/4G |
Physical(Inverter) | |
Dimension, D*W*H(mm) | 420*310*110 |
Cartoon Dimension, D*W*H(mm) | 588*463*205 |
Net weight(kg) | 14.2 |
Gross weight(kg) | 15.7 |
Communication port | RS232/WIFI/ GPRS/ LITHIUM BATTERY |
PRODUCTION LINES
1.Scalable Stackable Design
Our Stackable Home Battery features a plug-and-play modular architecture, letting you start with a 10kWh base unit and expand up to 30kWh+ as your energy needs grow. The space-saving vertical design fits easily in garages or basements, making it the perfect Home Energy Storage System for homes of all sizes. Every Stackable Home Battery module integrates seamlessly, so you can scale without replacing your entire system.
Residential Solar Homes: Maximize solar self-consumption with our Home Energy Storage System, reducing grid reliance and carbon footprint.
Off-Grid Living: Our Off Grid Solar Energy Storage system powers remote cabins, tiny homes, and off-grid properties with reliable, independent power.
Whole-House Backup: Our Residential Solar Backup Power solution keeps your home powered during outages, protecting your family and valuables.
Home Offices & Small Businesses: The Stackable Home Battery provides scalable backup power to prevent costly downtime for home-based operations.
Conclusion
Invest in a Home Energy Storage System that grows with you. Our stackable modular LiFePO4 Solar Battery system combines flexibility, safety, and smart performance, making it the ultimate Residential Solar Backup Power solution. Whether you want to cut energy bills, go off-grid, or protect your home from outages, our Stackable Home Battery and Off Grid Solar Energy Storage options empower you to take control of your energy future.
O
We provide comprehensive B2B Technical Support, including system sizing consultations, remote diagnostic assistance, and localized marketing materials. Our Solar Inverters and ESS products typically carry a 5 to 10-year performance warranty. We also maintain a specialized engineering team to assist B2B partners with troubleshooting and firmware updates, ensuring the stability and longevity of every Renewable Energy Storage project we supply.
Yes, scalability is a core advantage of our Modular Energy Storage architecture. Our Stackable Battery Storage units and Hybrid Inverters support parallel configurations. For instance, up to 15 battery modules can be synchronized to create a high-capacity Solar ESS, and multiple inverters can be paralleled to handle larger loads. This allows EPC contractors to deploy tailored energy solutions that grow alongside the client's energy demands.
Every Jiahongyu LiFePO4 Battery module is equipped with an industrial-grade Smart BMS (Battery Management System). This system provides real-time monitoring of cell-level telemetry, including voltage balancing, thermal management, and over-current protection. With Grade-A cells, our storage units offer over 6,000 deep-cycle lives, providing a high-ROI Lithium Battery Backup solution for mission-critical residential and commercial applications.
A: Our Hybrid Inverter series is engineered with a multi-protocol communication interface, supporting CAN, RS485, and RS232. This ensures seamless integration with leading LiFePO4 battery brands and allows for firmware adjustments to meet specific regional grid codes (such as CE, AS4777, or IEEE 1547). For system integrators, this flexibility simplifies the installation of a comprehensive Solar Energy Storage System across diverse international markets.
